Manufacturing Processes

Posted on February 9th, 2016 by RWM Admin
Table of Contents
CNC Lathe Machining
CNC Mill Machining
Production Support
Outside Processes

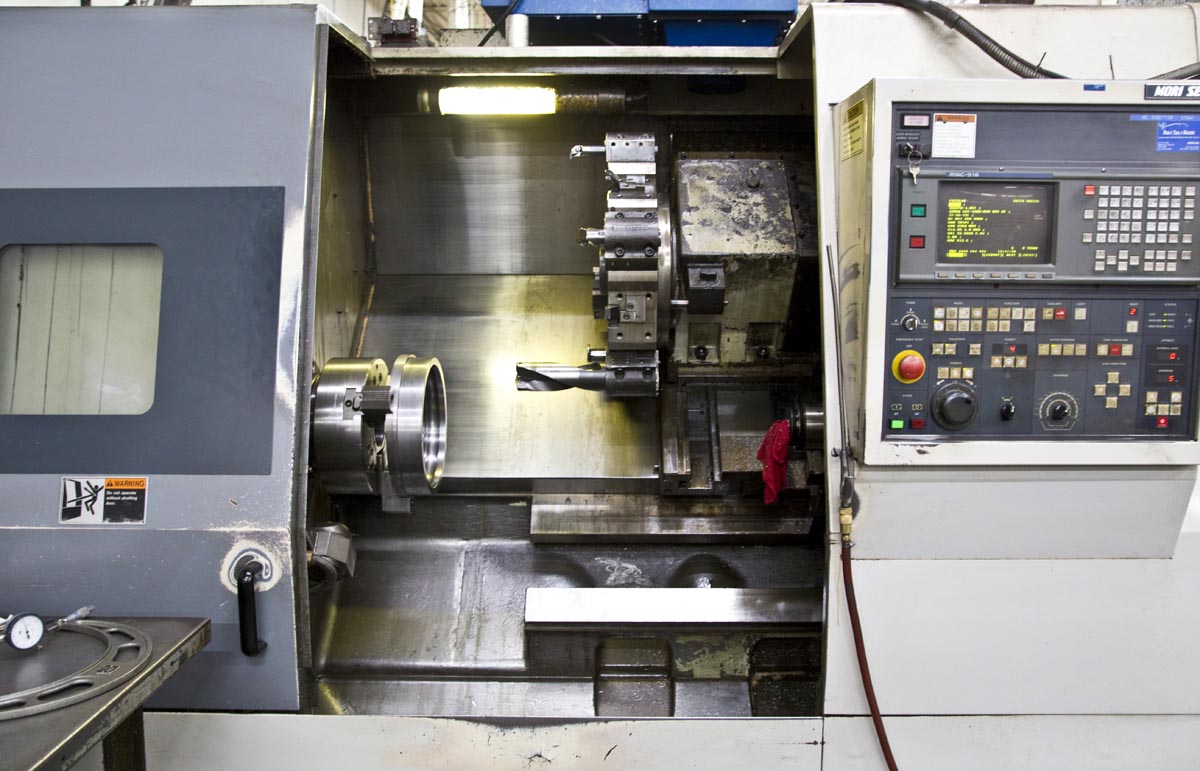

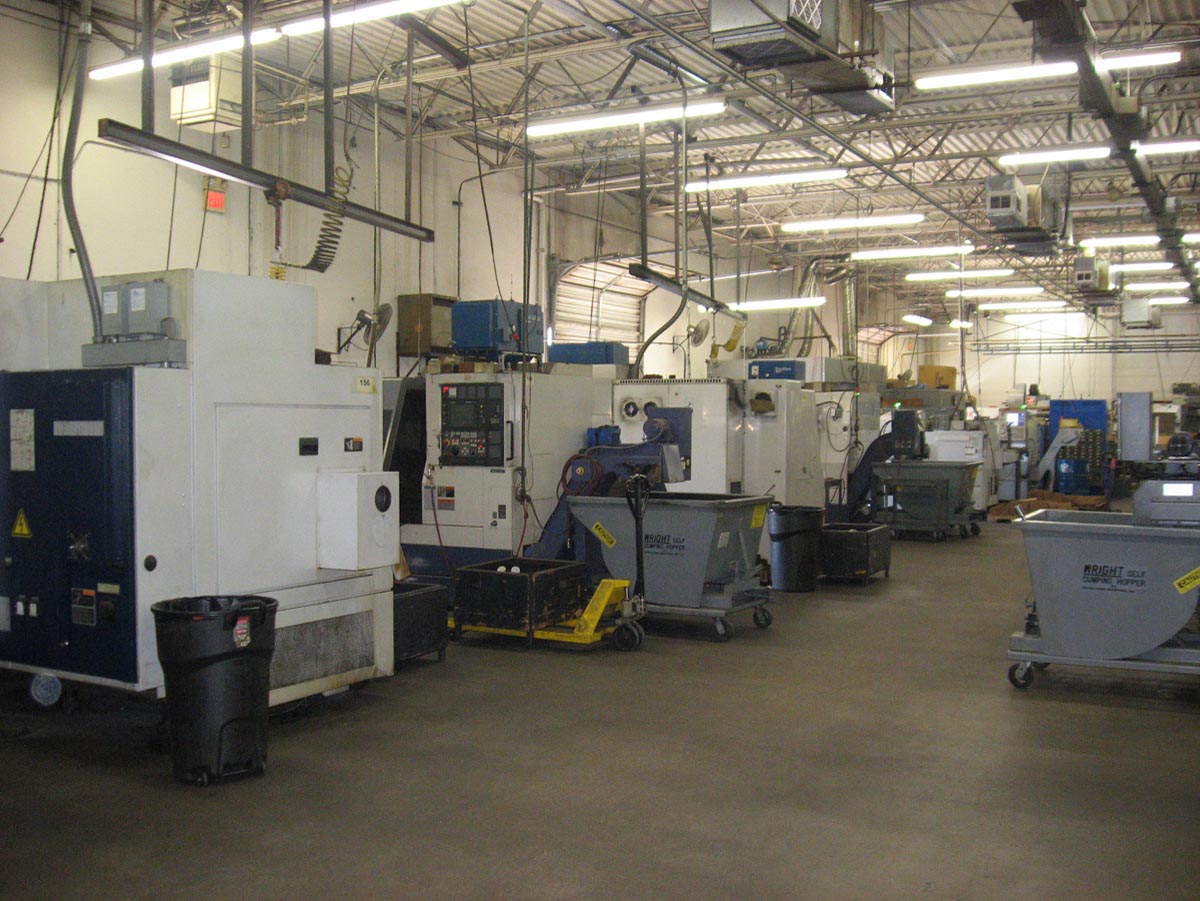

CNC Lathe Machining


  • 12” MAX TURNING DIAMETER
  • 1/8” MIN TURNING DIAMETER
  • 6.55” MAX THRU SPINDLE BORE
  • 48”MAX TURN LENGTH

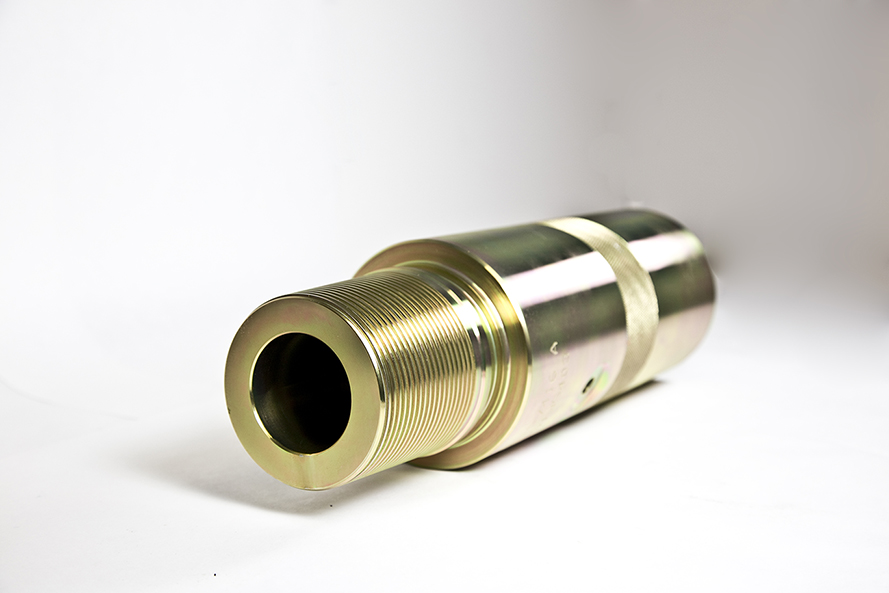

CNC Lathe machining service from 1/8” to 12” max turning diameters, with capabilities 6.55” max thru spindle bore to 48” max turn length. Many of our complex lathe parts require CNC milling services. These are coordinated throughout the shop with our bar coded production scheduling system.

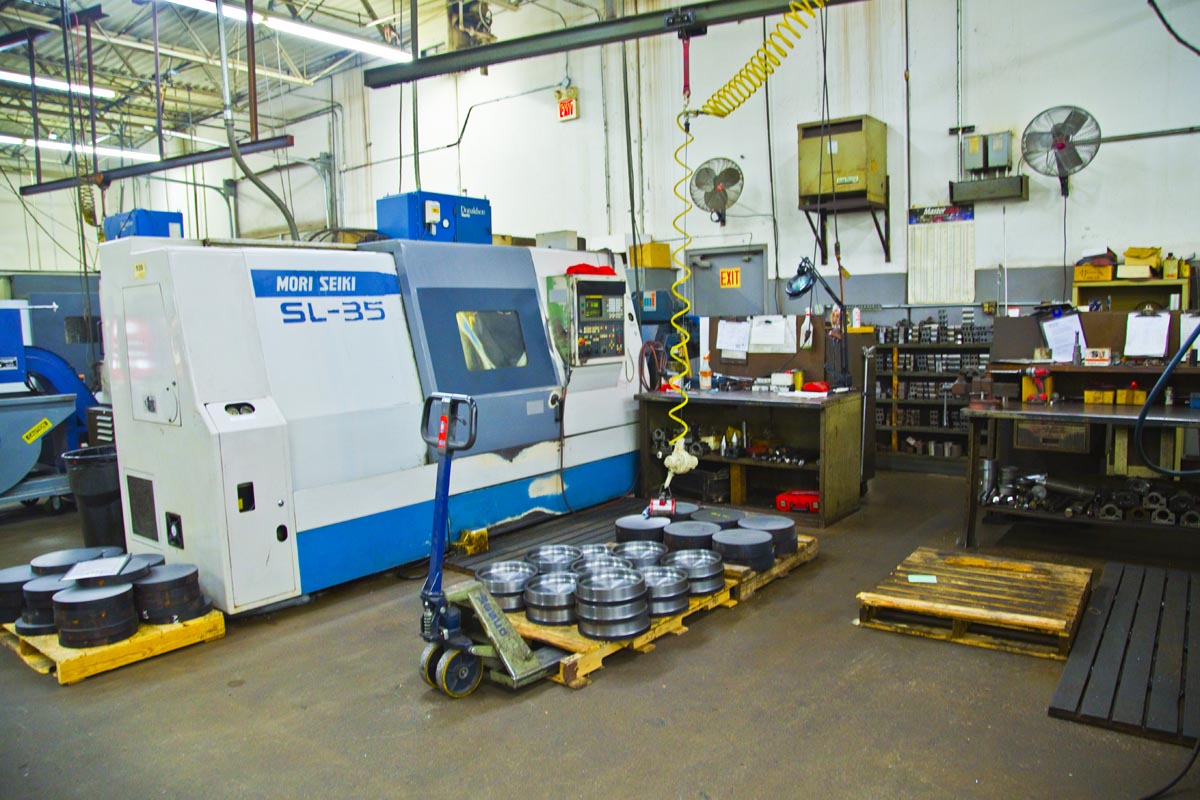

  • 2 MORI SEIKI SL35
  • 1 MORI SEIKI SL300
  • 2 MORI SEIKI NL 3000
  • 2 MORI SEIKI SL250
  • 2 MORI SEIKI SL25
  • 1 MORI DURATURN 1550
  • 1 SAMSUNG SL25

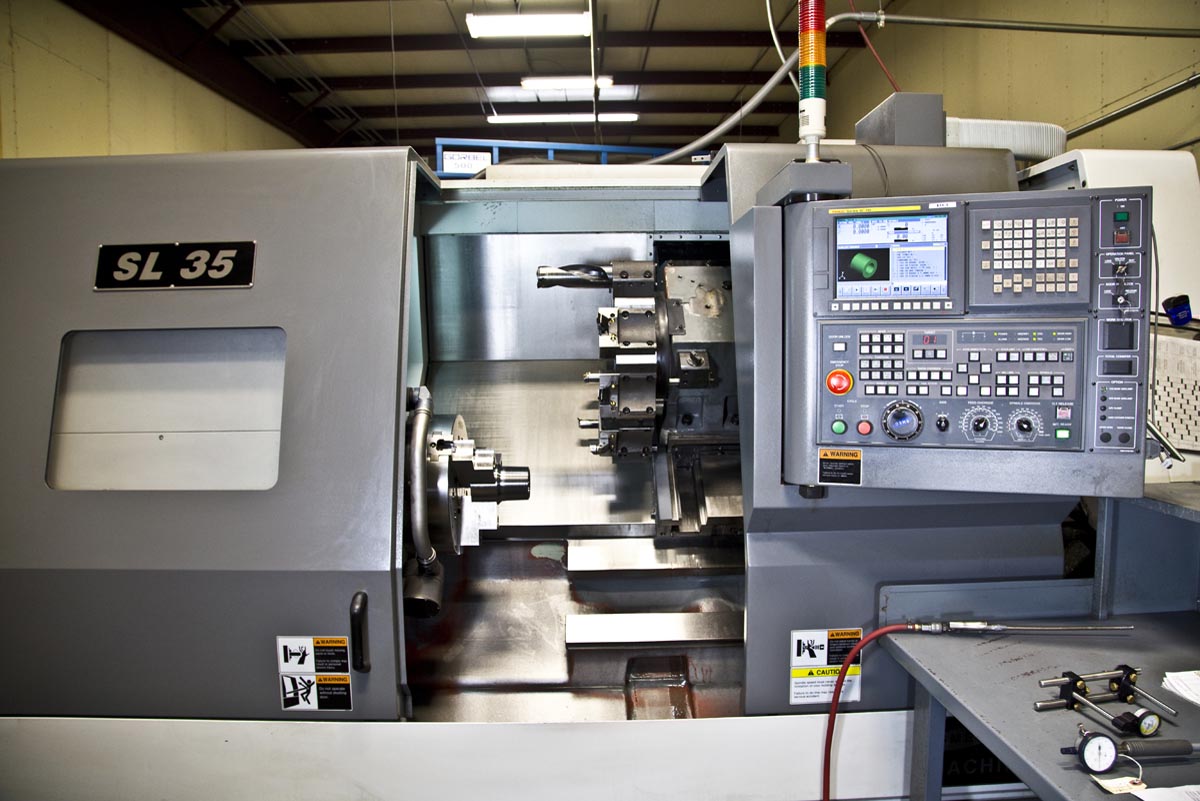

  • 1 SAMSUNG SL35/750
  • 1 SAMSUNG SL35/1500
  • 1 DOOSAN PUMA 300

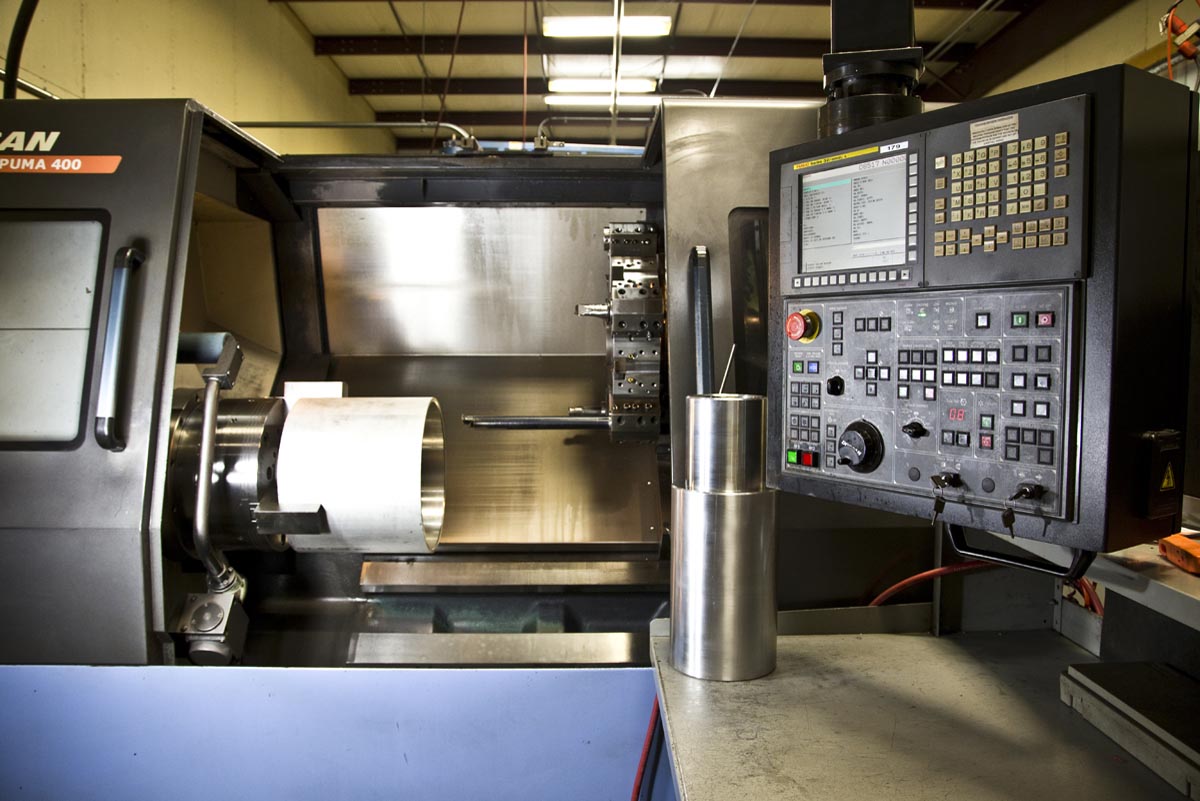

  • 1 DOOSAN PUMA 400
  • 4 HAAS SL 10 Big Bore
  • 2 HAAS O/L GANG TOOL LATHE

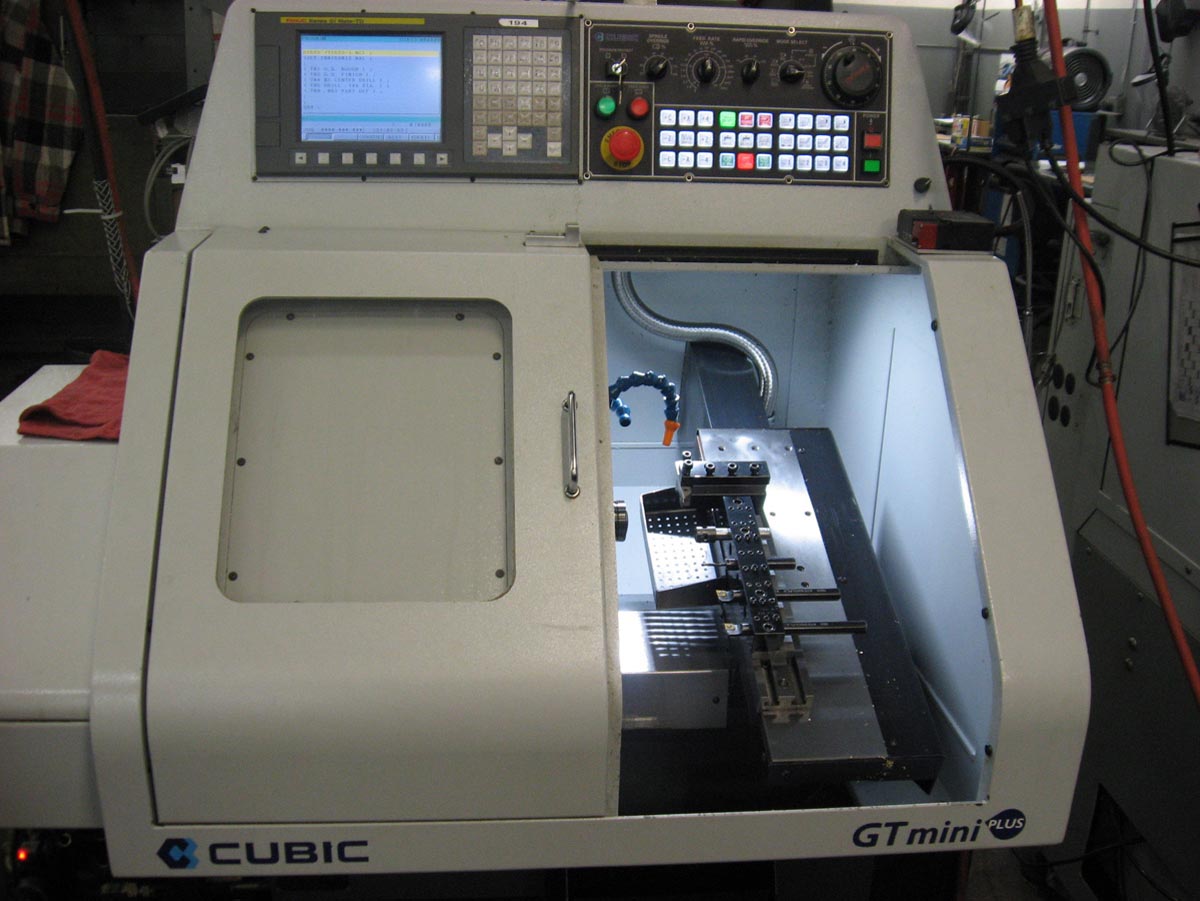

  • 5 CUBIC GANG TOOL LATHE
  • 1 ROMI GANG TOOL LATHE

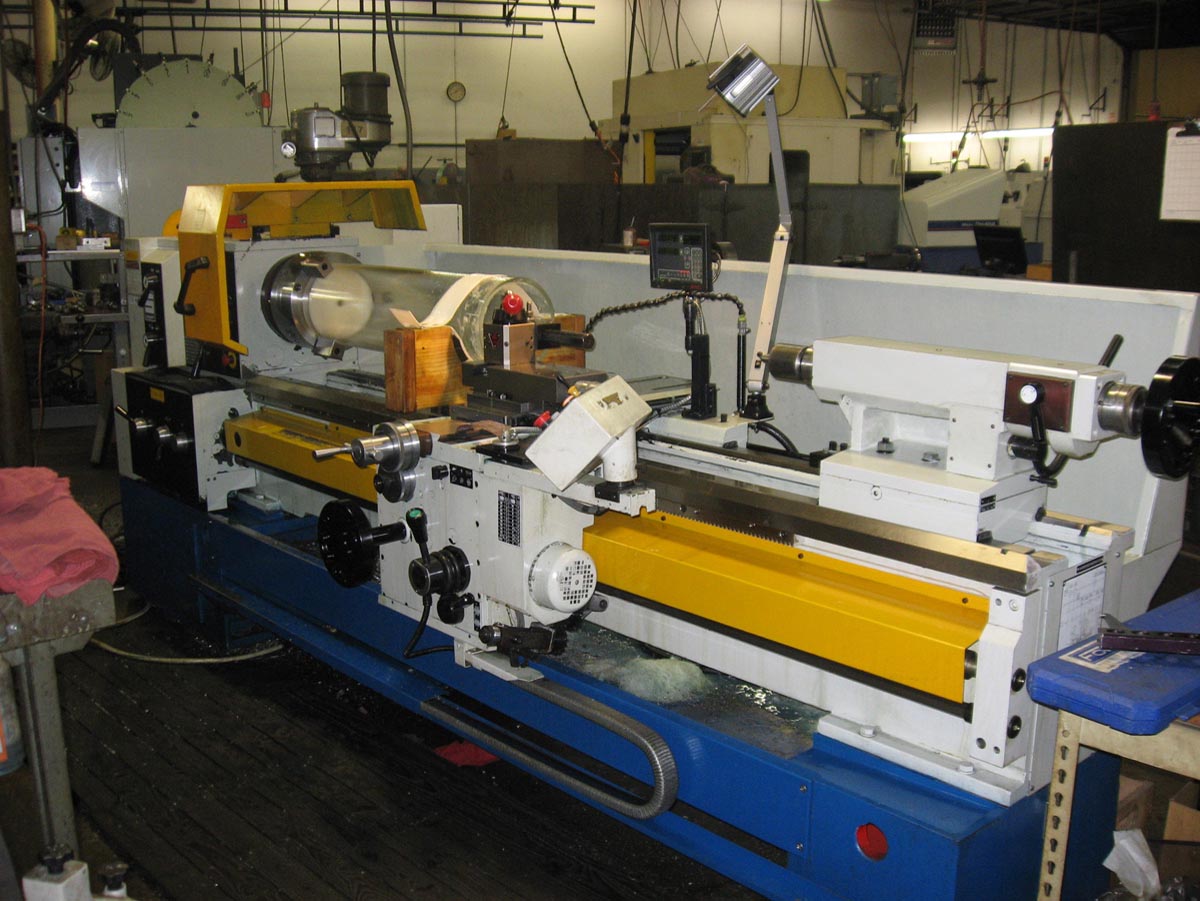

CONVENTIONAL MACHINES
  • 1 VICTOR ENG LATHE
  • 1 COLCHESTER ENG LATHE
  • 2 SUMMIT LATHE

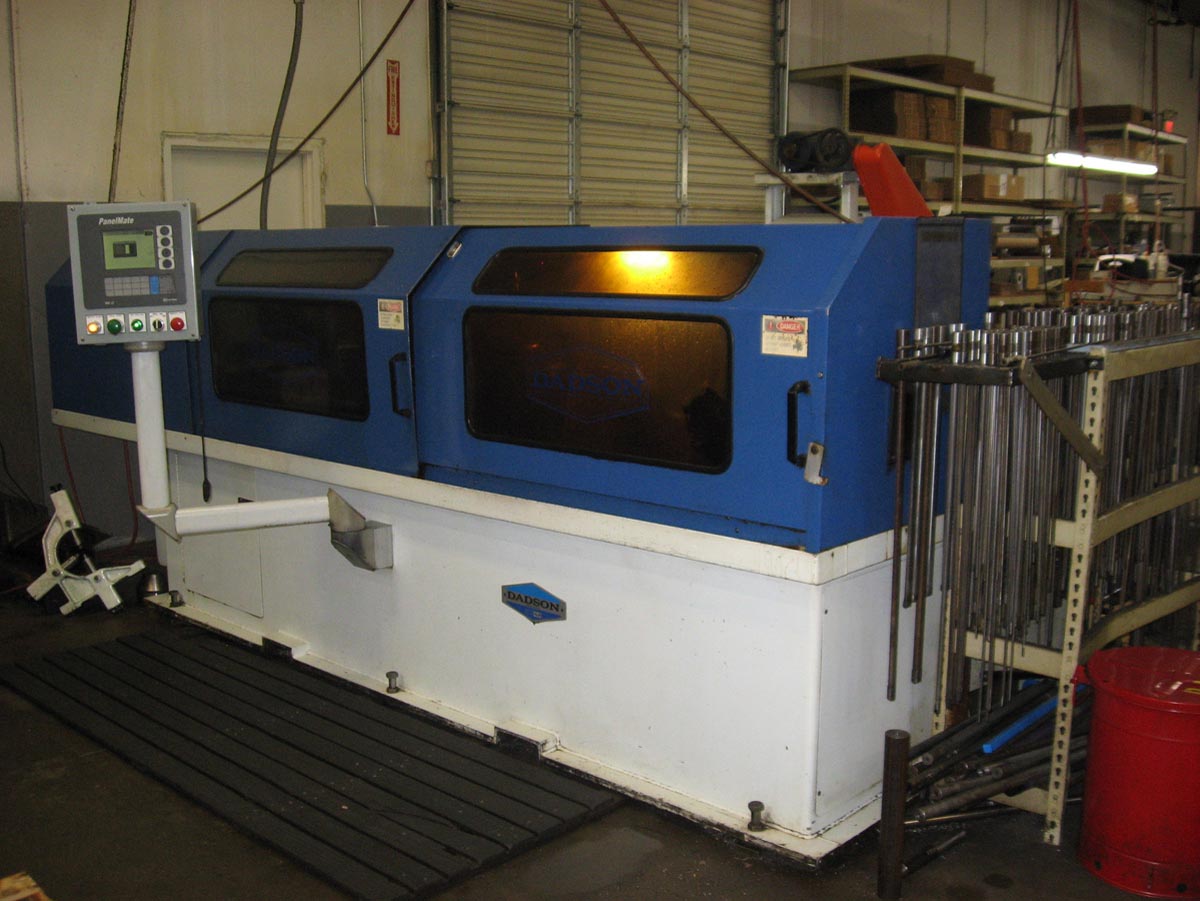

  • 1 DADSON GUNDRILL (1/8” DIA TO 1.375” X 42” DRILL LENGTH)

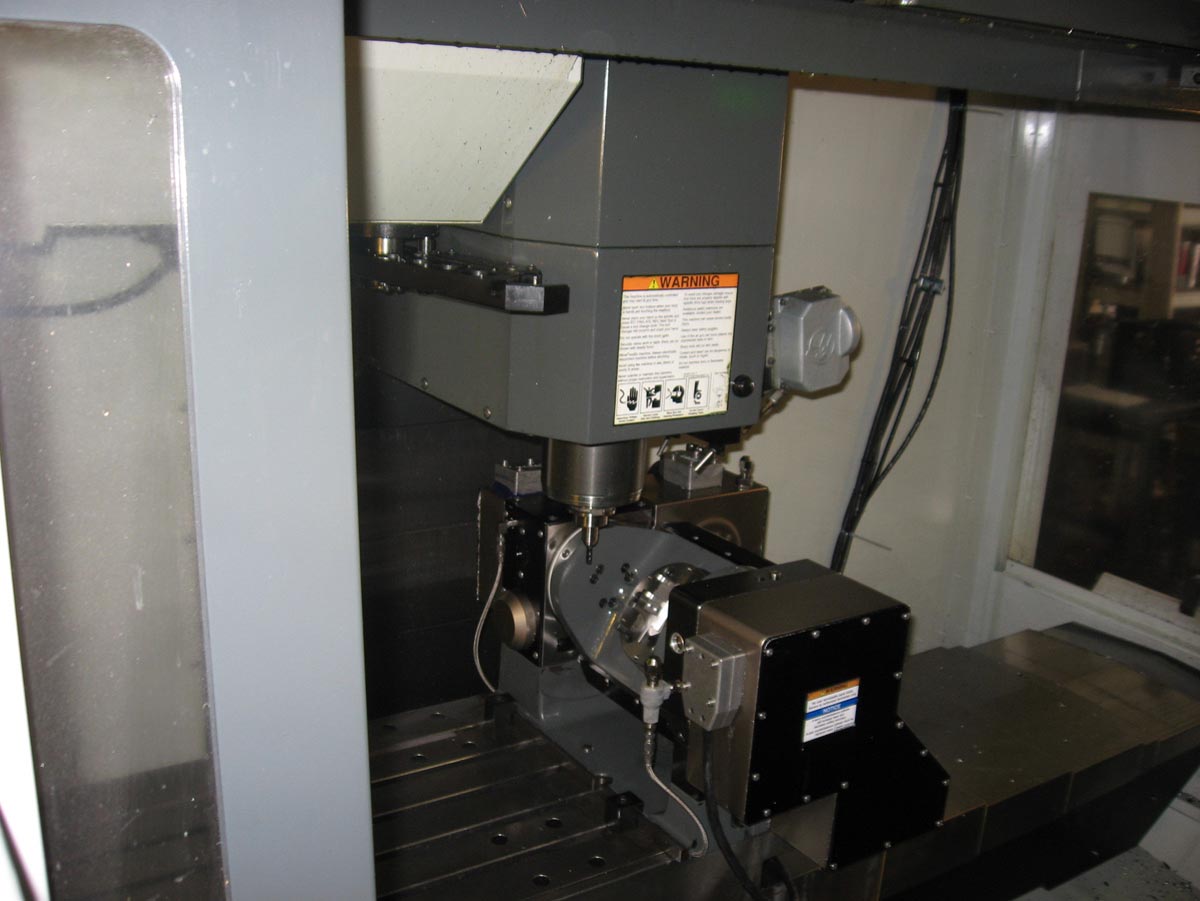

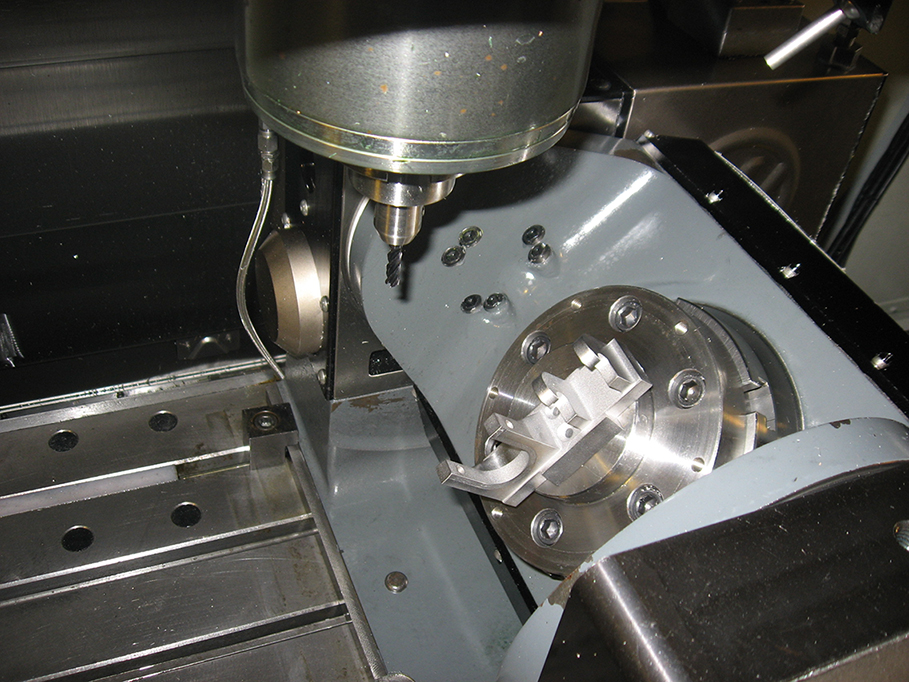

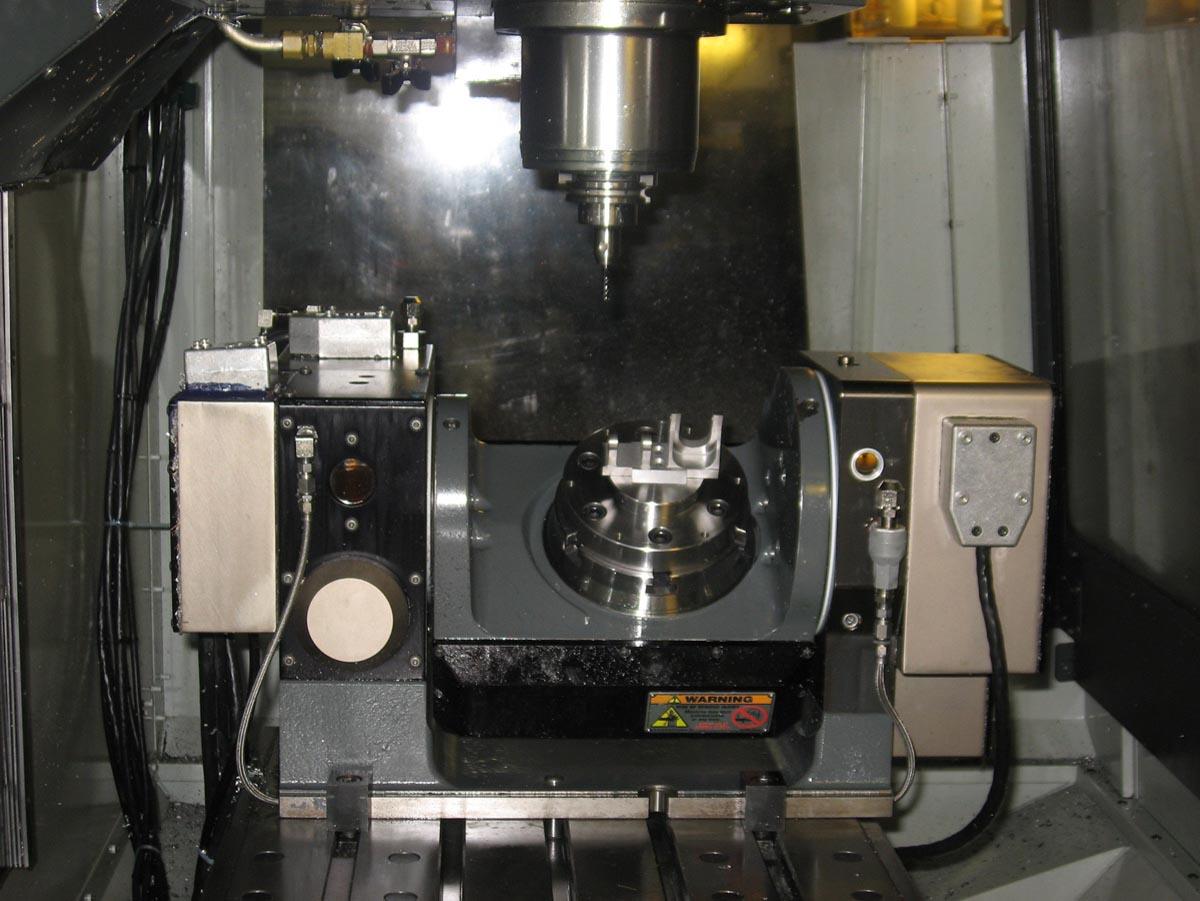

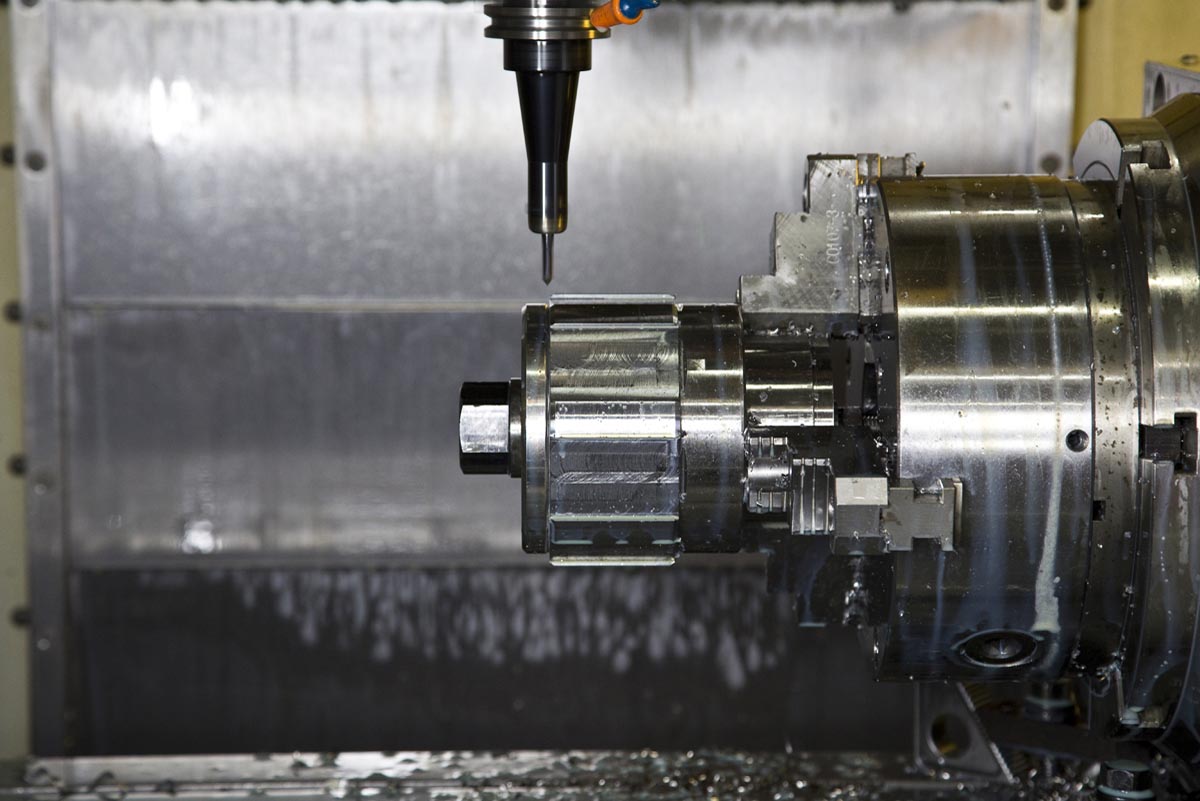

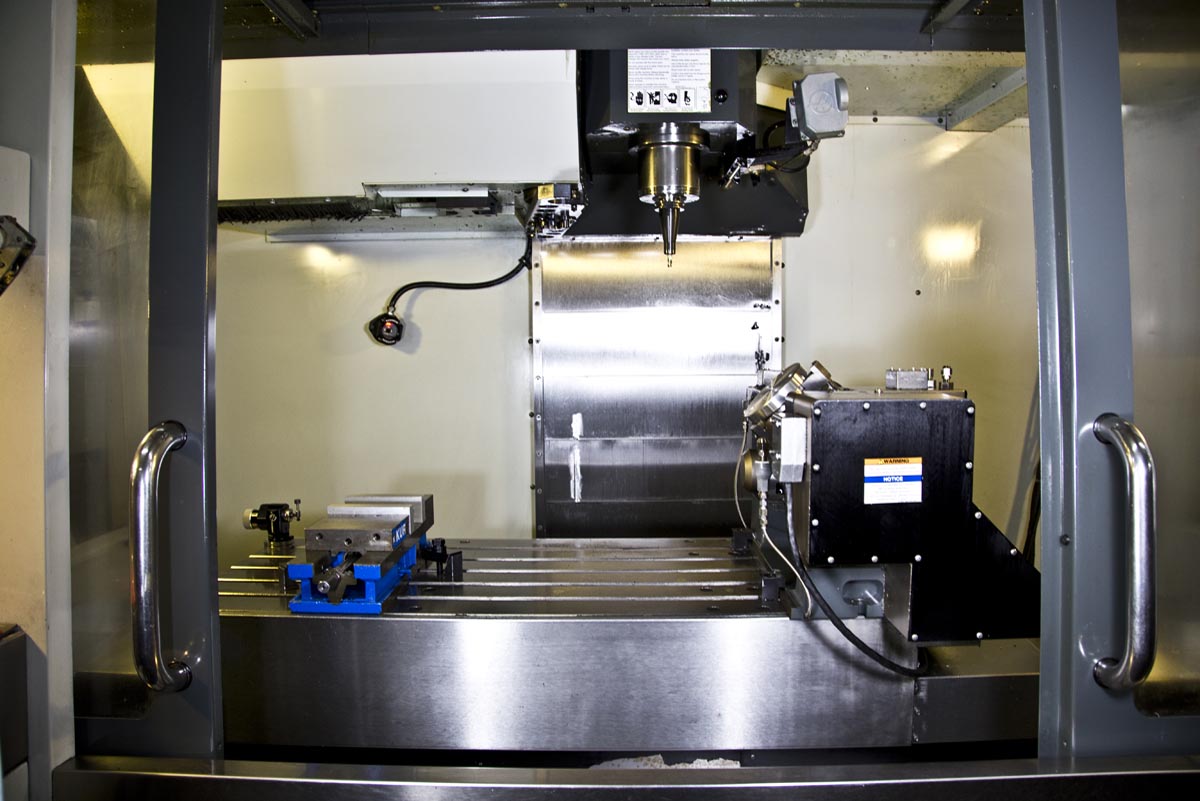

CNC Mill Machining (4 Axis and 5 Axis Rotary Trunnion)

Starke Machining offers multiple CNC Mills with capabilities up to 50” X Axis height with a 5 Axis CNC trunnion for complex geometries. Other capabilities include a 4 Axis Robo drill and a Tilting Head mill needed for special projects. Our personnel are fully trained and the complex geometries are insured with our extensive quality control lab. Starke Machine insures your project status consistently with our bar coded production scheduling system.
  Axis Travel Range
CNC Mill Equipment X Y Z
1 HAAS VF-4 (4 AXIS ROTARY) 50” 20” 25”
2 HAAS VF-4SS (5 AXIS ROTARY) 50” 20” 25”
1 HAAS VF-5 (4 AXIS ROTARY) 50” 26” 25”
1 HAAS VF-2 (4 AXIS ROTARY) 30” 16” 20”
1 HAAS VF-3 (4 AXIS ROTARY) 40” 20” 25”

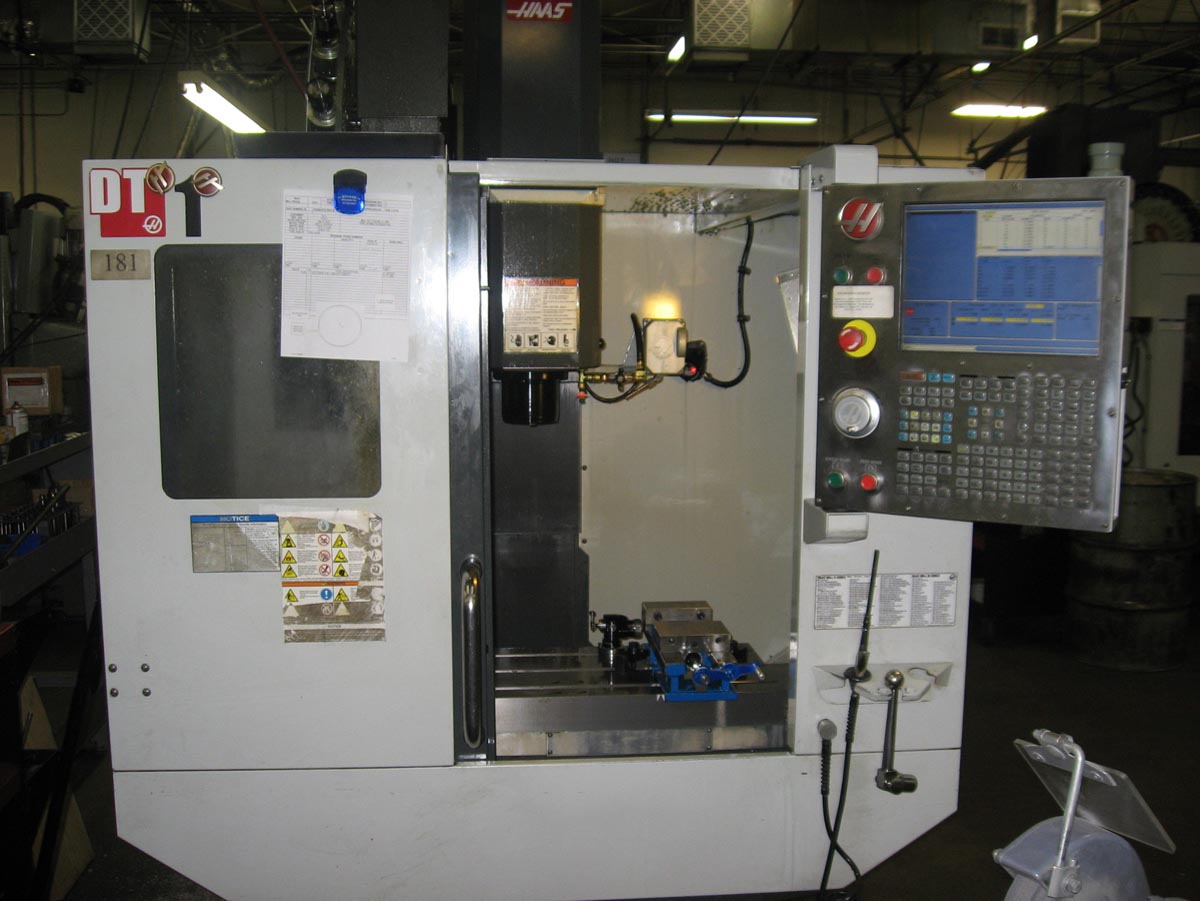

1 HAAS DT-1 DRILL MILL 20” 16” 15.5”
1 ROBO DRILL T2ifl (4 AXIS ROTARY) 27.5” 14” 12.5”
1 A-TRUMP 5BFC TILTING HEAD 32” 18” 20”
CONVENTIONAL MILLS X Y Z
3 BRIDGEPORT SERIES 1 30” 12” 16”

Production Support Equipment

  • 1 SUMMEM ML-2000 HONE POWER STROKE
  • 1 SUNNEN HONE MANUAL MBB – 1660
  • 1 HORZ SAW SPARTAN PA 13/2 AUTO FEED
  • 1 HORZ SAW SPARTAN PA 10/3 EPC AUTO FEED
  • 3 VERT ROLL-IN SAWS
  • 1 BEAD BLASTER
  • 1 VIBRO MILL

MISCELLANEOUS DRILL PRESSES, GRINDERS, AND WELDING EQUIPMENT

TURNKEY VALUE ADDED OUTSIDE PROCESSES


  • Grinding
  • Welding
  • Painting
  • Heat treating
  • Destructive Testing
    • Charpy Testing
    • Tensile Testing
  • Plating
    • Anodize
    • Black Oxide
    • Boron Nitride
    • Chem Film
    • Clear Iridite
    • Copper
    • E nickel
    • Flourolon
    • Nedox
    • Phosphating
    • Powder Coating
    • Xylan Coating
    • Zinc
  • Nondestructive Testing
    • Liquid Dye Penetrant
    • Ultra-sonic Inspection
    • Hardness Testing
    • Magnetic Particle
    • Pre-penetration clean/etch
    • Rockwell
    • Conductivity
    • Salt Spray Test
